Archimedes
CAD agent
Describe a part or a change to one, and Archimedes builds the features in the CAD seat you already own. Nothing gets exported to STEP.
OnshapeSolidWorksFusion 360CATIA 3DXSiemens NXNative engine
Product / Enginuity Design Studio
Enginuity Design Studio
Archimedes models the part, DaVinci simulates it, and Vulcan programs the machine that makes it. They work in the CAD, simulation and CAM tools you already run, or in the app’s own engine when you have none.
Enginuity Design Studio
bracket.frd bracket.step
129.76997.32864.88832.4470.006 MPa

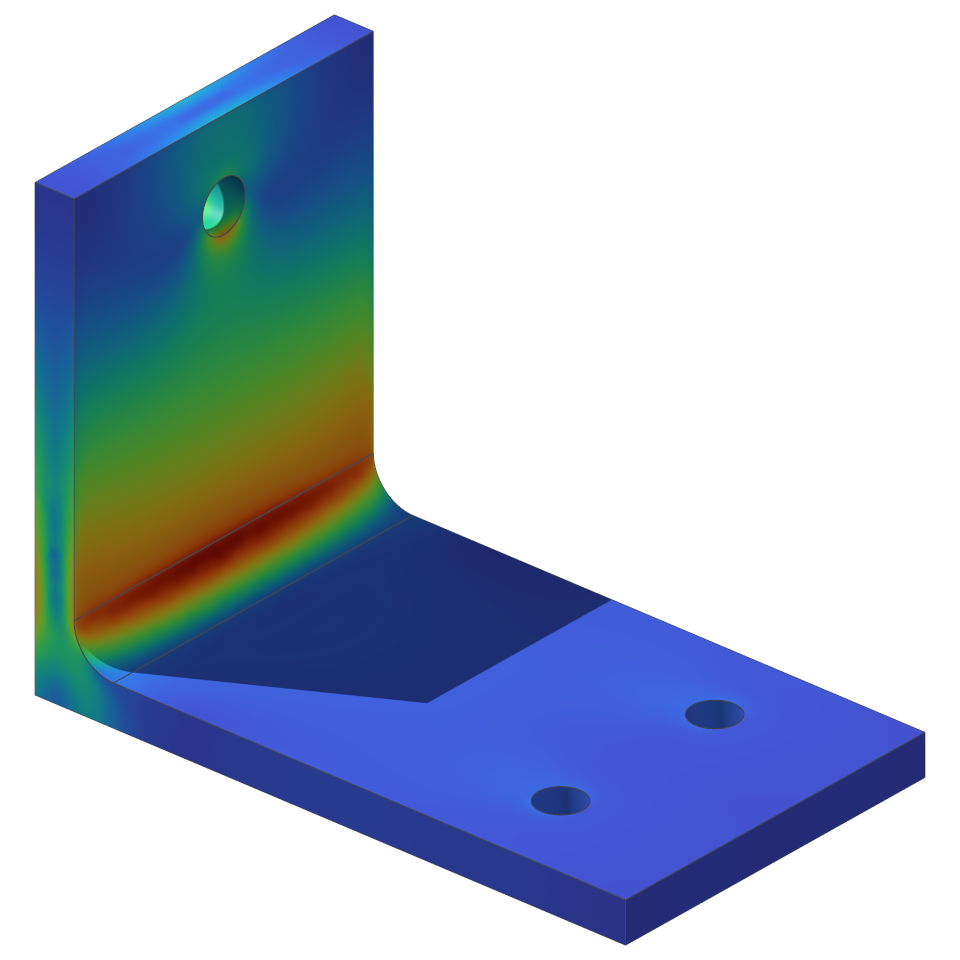

Von Mises σvM · 0.006 to 129.769 MPa
View ⌃
Model a mounting bracket: 120 × 70 × 8 mm base, 90 mm upright, R8 inside fillet, two M8 clearance holes and a 10 mm pin bore at the top.
Execute part operation subagent6 steps
Built ◈ bracket.step in SolidWorks: base, upright, fillet and three holes. One solid body, no rebuild errors.
Bolt ◈ bracket.step to the floor and put 1.5 kN through the top pin, sideways. 6061-T6. Where is it closest to yield?
Inspect workspace
Confirm parameters3 parameters
Simulation study
Mesh29,501 C3D10
Loads and fixtures3
SolveCalculiX
Peak von Mises is 129.8 MPa, along the root of the inside fillet. That is a factor of 2.1 on the 276 MPa yield. The top of the upright moves 0.84 mm.
Try a 10 mm fillet and re-run
Attach files
SolidWorks•DaVinci
SolidWorks•DaVinciNative Desktop
Windows today, macOS and Linux next. Heavy compute runs in the cloud.
Complete Context
The agent sees your files and every earlier message, so you can pick up where you left off.
Workspace File Manager
Browse, rename and open design files inside the app.
01 / THE AGENTS
One agent for each stage of the work
DaVinci
CAE agent
Describe the test, and DaVinci runs it on the model you just built, then proposes the change that makes the part pass.
FEAThermalCFDModalBuckling
Vulcan
CAM agent
Vulcan writes the machine program for a part and simulates the run, flagging gouges and collisions before anything is cut.
CNC machining3D printingLaser / plasma / waterjetSheet metal
02 / THE LOOP
Engineer with natural language
01
Describe the job
Say what to design, change or analyse, in plain English.
02
The agent plans it
It reads the model, your files and the conversation so far, and lists its steps before running any.
03
It runs in your tools
Each step runs in the software you connected, where you can watch it.
03 / EARLY ACCESS
Take a part from idea to finished
Enginuity Design Studio is invite-only for now. Request access and bring a part you know well.
